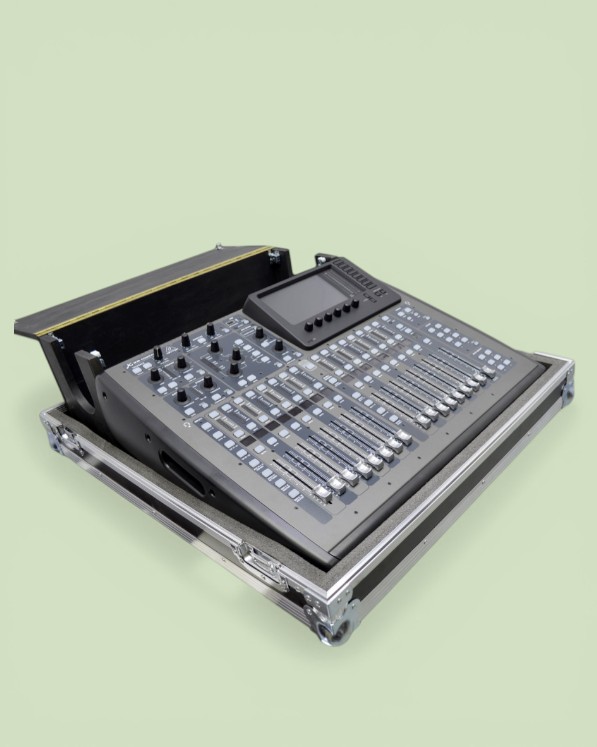

Case for BEHRINGER X32 Compact Digital Mixer

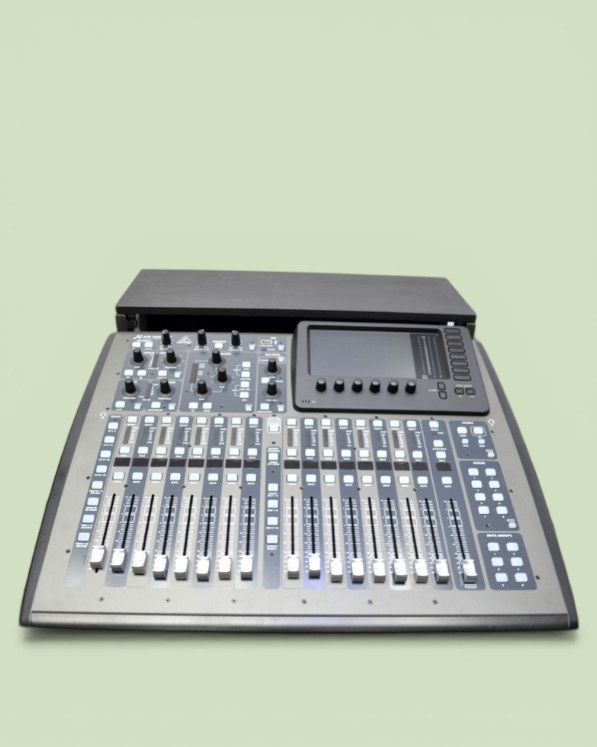

The case for the BEHRINGER X32 Compact digital mixing console is made of 6.5 mm plywood and features a 200 mm wide toolbox for cable connections. The 20 mm thick soft foam insert secures the equipment without contacting the faders or hardware buttons.
Product description
The case for the BEHRINGER X32 Compact digital mixing console is designed to accommodate and transport the equipment. The structure provides convenient organization of the workspace and access to the required console connectors.
Case Features
- The enclosure is made of 6.5 mm plywood.
- The external case dimensions are 680 × 760 × 250 mm.

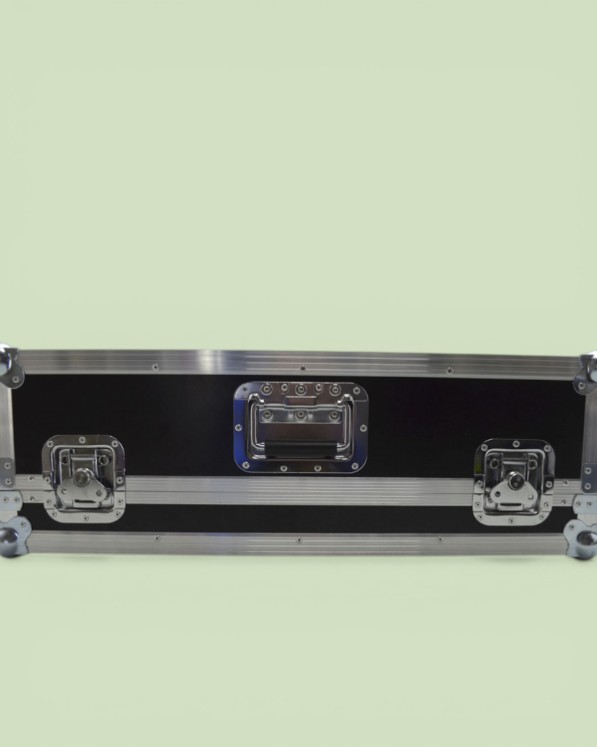

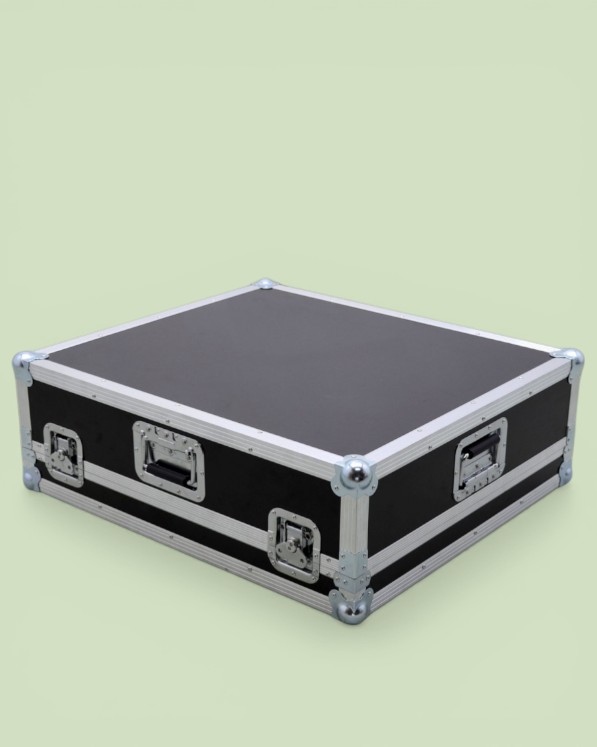

- The hardware includes 4 recessed latches.

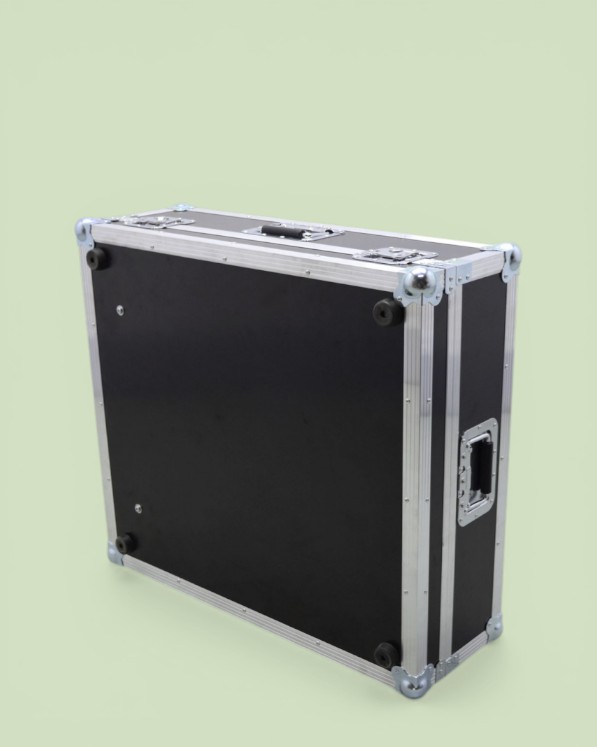

- The case is equipped with 3 recessed carrying handles.

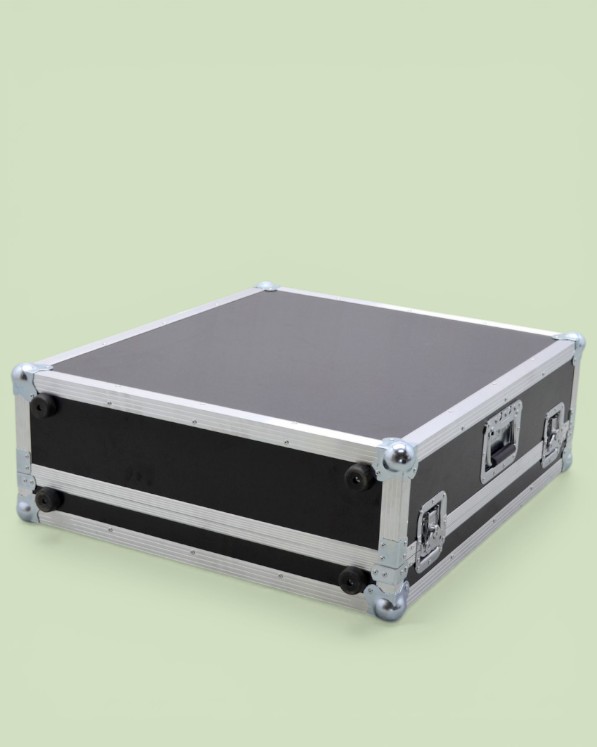

- The bottom and side of the enclosure have 8 feet.

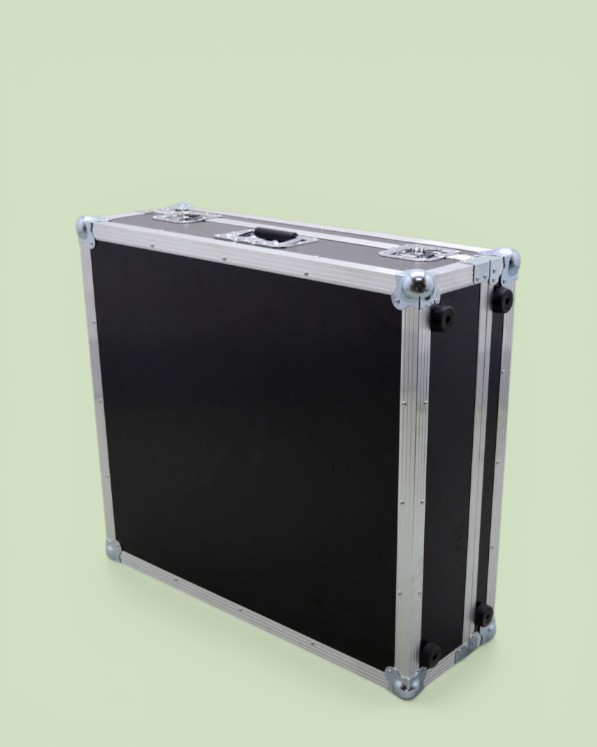

- During transportation, the case can be safely positioned either on its base or on its side.

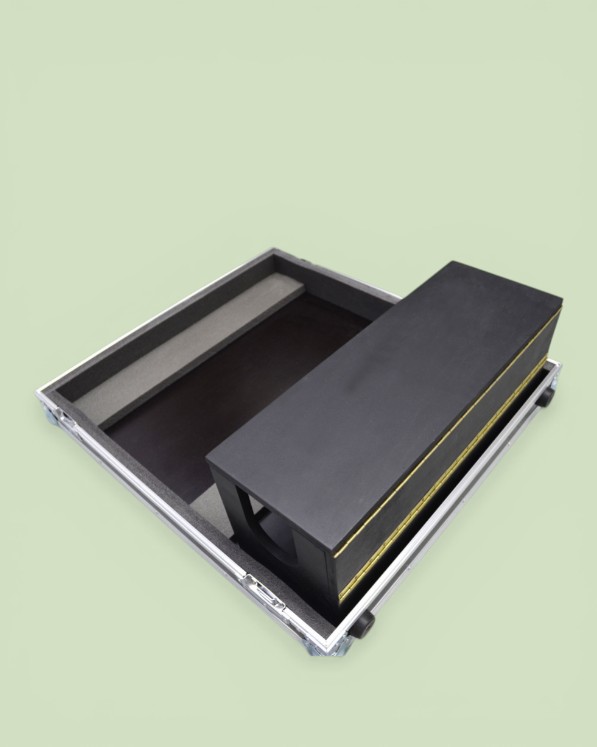

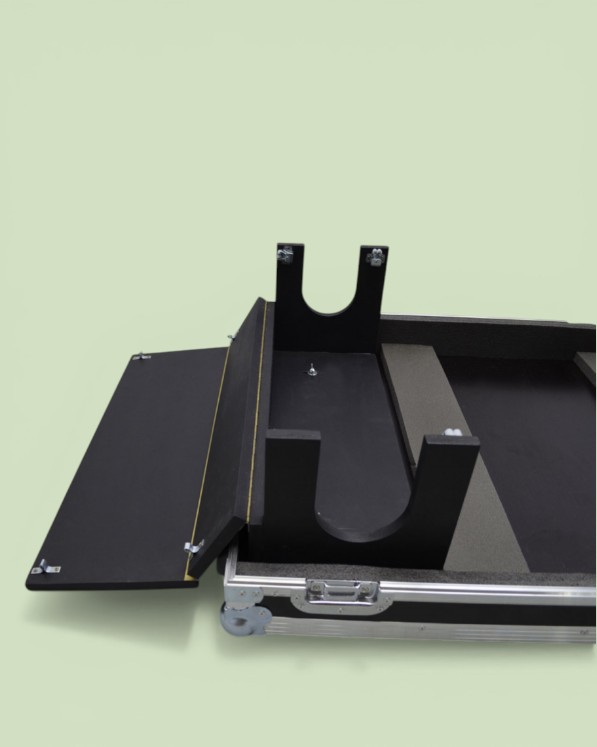

- The design includes a 200 mm wide toolbox for cable connections.
- A laptop or other equipment can be placed on top of the toolbox.

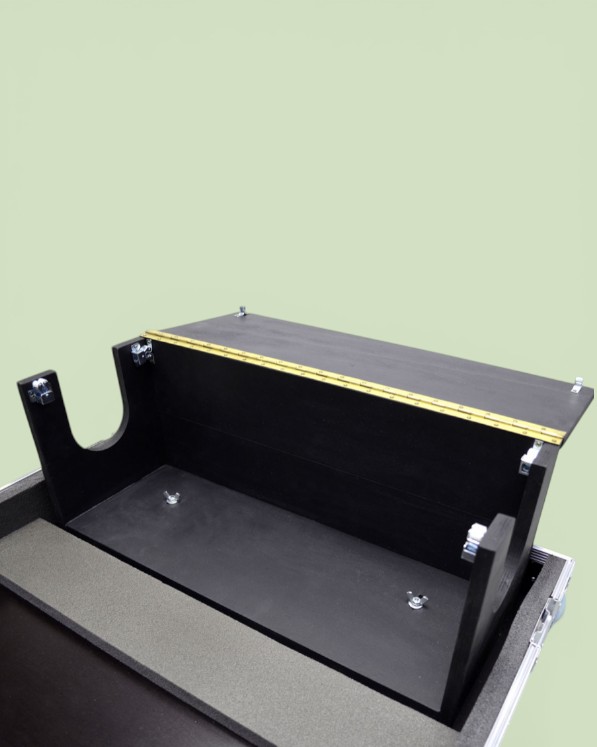

- The toolbox lid is equipped with spring retainers that help prevent unwanted opening during vertical transportation.

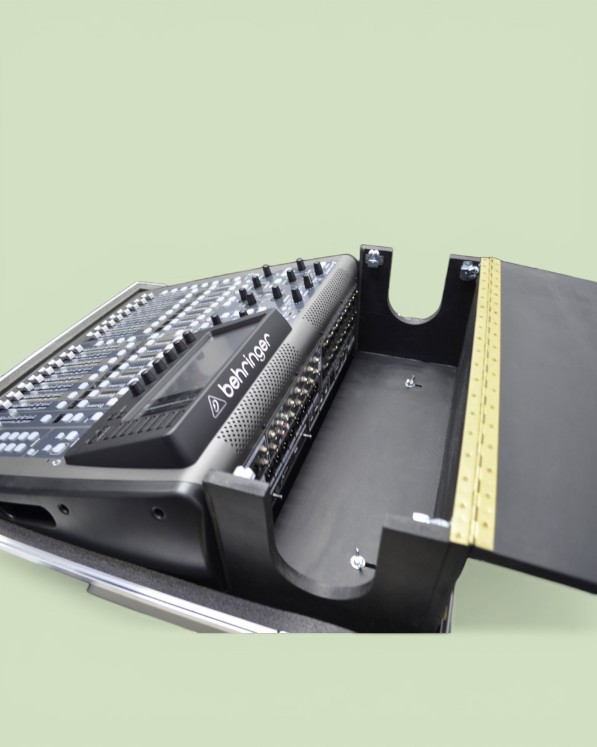

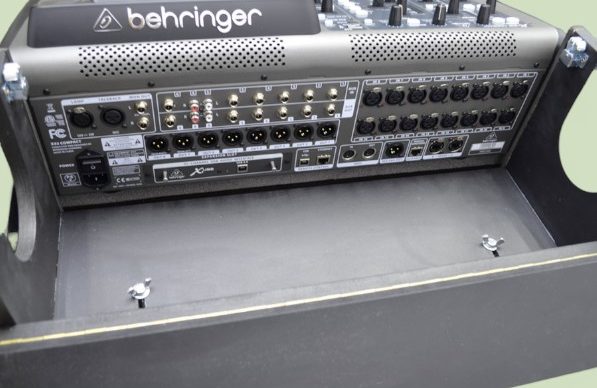

- The toolbox design simplifies cable management at the rear of the mixing console without restricting access to the required connectors.

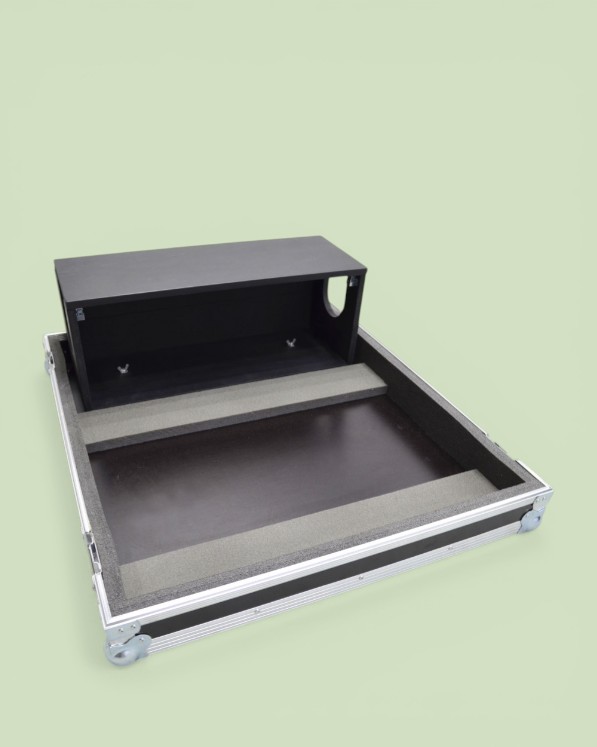

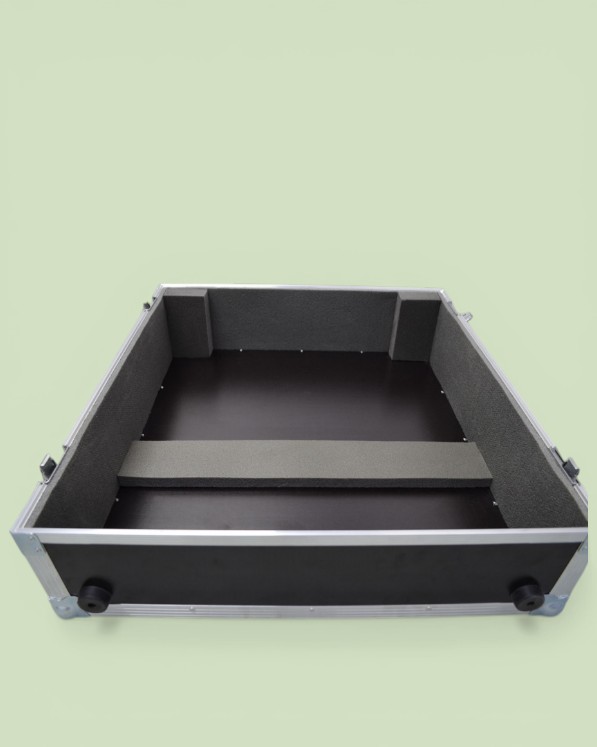

- A soft foam insert for the mixing console is installed inside the case.
- The side foam insert is made of 20 mm thick soft material.

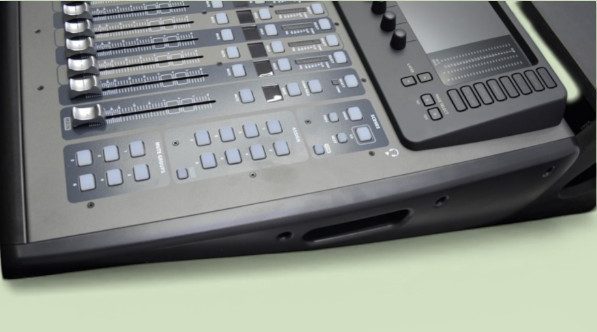

- The foam insert is configured to securely hold the equipment in its assembled position without contacting the faders or hardware buttons.
- The approximate total case weight is 14 kg.
Custom Design
BOXO designs transport cases according to the customer’s equipment and requirements. The enclosure dimensions, foam insert configuration, toolbox design, placement of handles, latches, and feet, material, and hardware are selected based on the dimensions of the digital mixing console and the transportation conditions.
For the BEHRINGER X32 Compact, a custom case can be manufactured with a properly configured foam insert, a toolbox for cable connections, and the required hardware.
Additional Information
The case can be made from materials with a thickness of 4, 6, 9, or 12 mm: laminated plywood, PVC-coated plywood, lightweight plastic, or composite aluminum, in any required color.
Optional equipment:
- transport wheels
- telescopic handle
- access openings
- additional hardware
-
Prototype Before Production. We first manufacture a single prototype for your review and approval. Once every detail is confirmed, we proceed with full production, ensuring every unit matches the approved sample exactly.
-
Rush Orders in as Little as 5 Days. Thanks to our efficient production process, we can fulfill urgent orders quickly without compromising quality
-
From 1 to 1,000+ Cases. Whether you need a single custom case or a large production run, we can handle orders of any size. We serve both businesses and individual customers, delivering high-quality solutions at scale.
