Case for Two LUX BEAM 230 Moving Head Spotlights
The case for two LUX BEAM 230 moving head spotlights is made of 6.5 mm laminated water-repellent plywood and features two separate compartments with soft foam inserts. An additional foam insert in the top lid secures the moving heads when the case is closed.
Product description

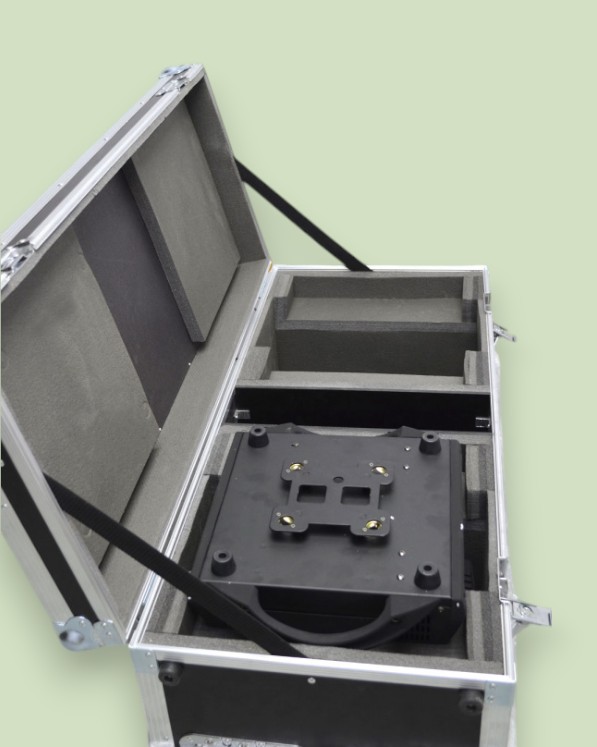

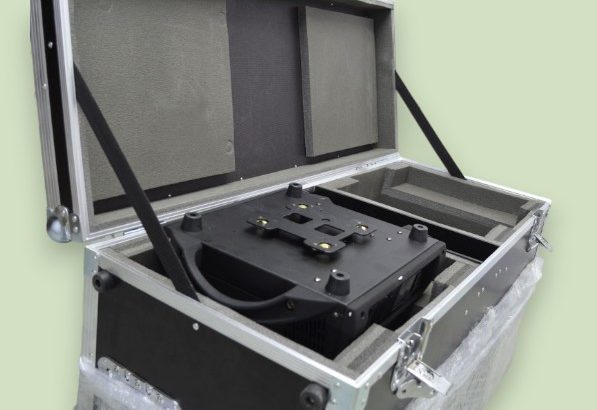

The case for two LUX BEAM 230 moving head spotlights is designed to accommodate and transport two lighting fixtures. The interior is divided into two separate compartments, each lined on all sides with soft foam inserts.
A foam insert is installed in the top lid to press against and secure the moving heads when the case is closed. The interior configuration keeps the fixtures securely positioned inside the enclosure and gives the complete setup a neat, presentation-ready appearance.
Case Features
- The enclosure is made of 6.5 mm laminated water-repellent plywood.
- The external case dimensions are 930 × 460 mm.
- The enclosure height is 570 mm.

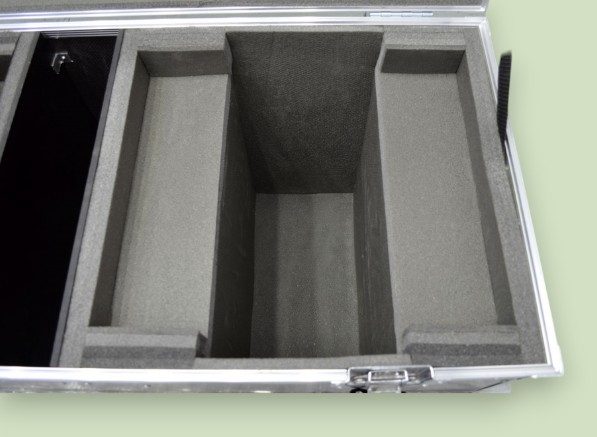

- The interior includes 2 separate compartments lined on all sides with soft foam inserts.

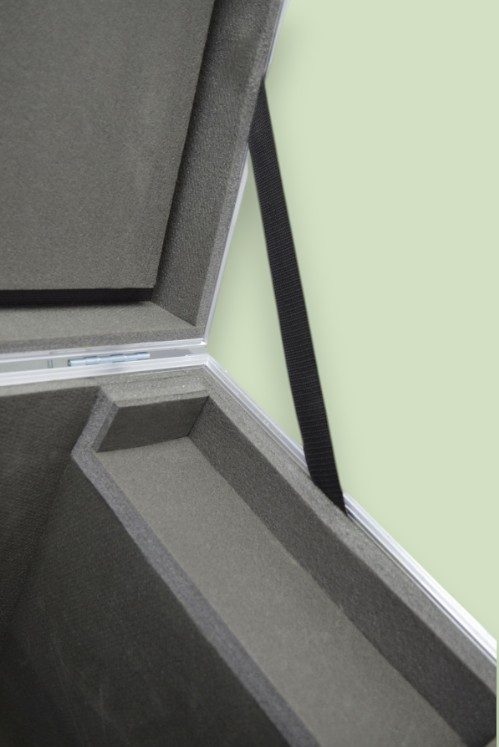

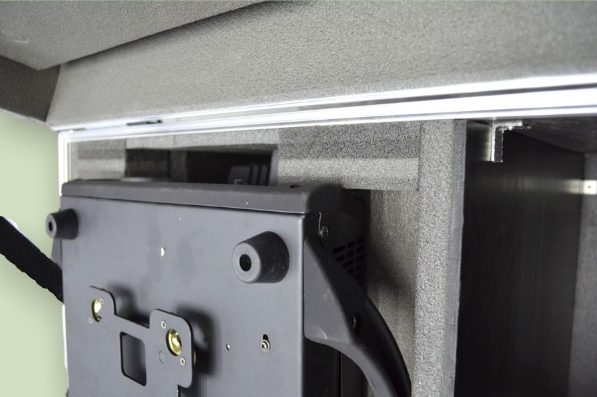

- The top lid features a foam insert that secures the moving heads when the case is closed.

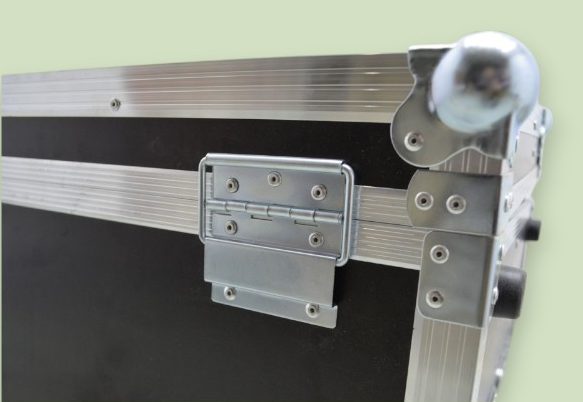

- The hardware includes 2 recessed latches, 4 recessed carrying handles, and 2 hinges.
- The bottom and end of the enclosure have 8 feet.

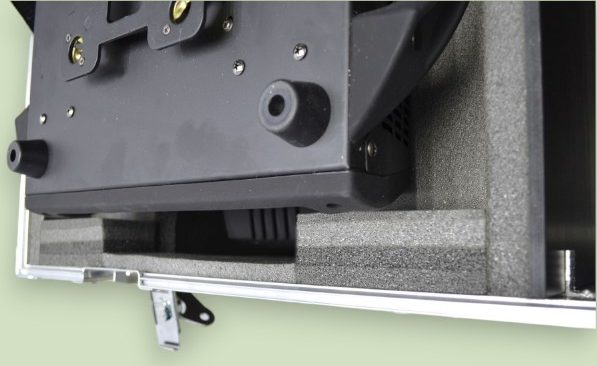

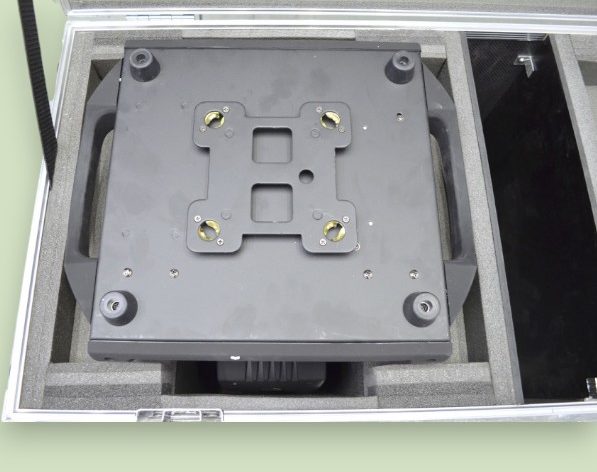

- The foam insert is positioned around the perimeter of the moving heads.
- The approximate total case weight is 18 kg.
Custom Design
BOXO designs transport cases according to the customer’s equipment and requirements. The enclosure dimensions, number and configuration of internal compartments, placement of the foam inserts, material, and hardware are selected based on the dimensions of the lighting fixtures and the transportation conditions.
For two LUX BEAM 230 moving head spotlights, a custom case can be manufactured with separate compartments, soft foam inserts around the perimeter, and additional fixation in the top lid.
Additional Information
The case can be made from materials with a thickness of 4, 6, 9, or 12 mm: laminated plywood, PVC-coated plywood, lightweight plastic, or composite aluminum, in any required color.
Optional equipment:
- transport wheels
- telescopic handle
- access openings
- additional hardware
-
Prototype Before Production. We first manufacture a single prototype for your review and approval. Once every detail is confirmed, we proceed with full production, ensuring every unit matches the approved sample exactly.
-
Rush Orders in as Little as 5 Days. Thanks to our efficient production process, we can fulfill urgent orders quickly without compromising quality
-
From 1 to 1,000+ Cases. Whether you need a single custom case or a large production run, we can handle orders of any size. We serve both businesses and individual customers, delivering high-quality solutions at scale.
