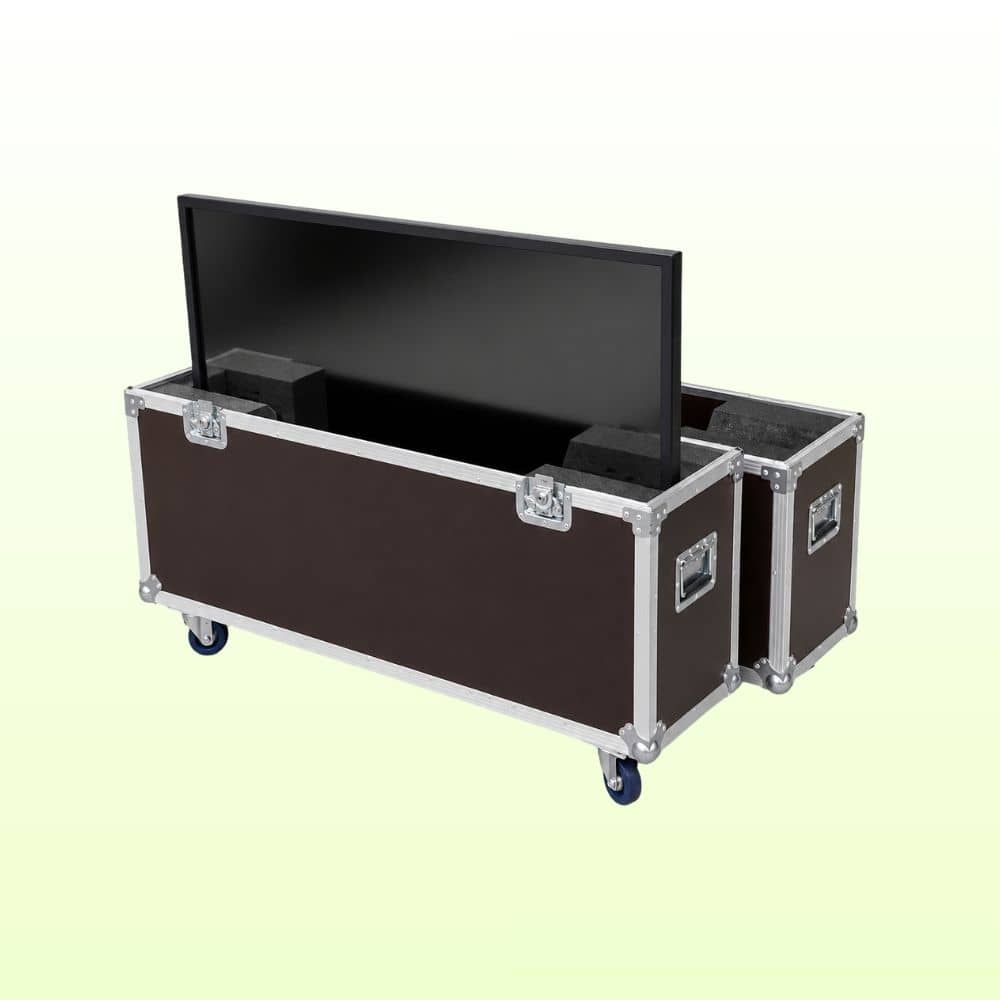

Case for Two Plasma Screens
The transport case for two plasma displays is made of 6.5 mm laminated plywood and features soft foam padding and an internal divider. Wheels mounted on support slats ensure proper weight distribution, while the compression foam insert in the lid helps securely hold the equipment in place.
Product description
The case for two plasma displays is designed for their safe storage and transportation. The structure helps position the equipment inside the enclosure, protect the screens during transport, and provide convenient handling of the complete set.
The model is made of 6.5 mm laminated plywood and is designed to accommodate two panels at the same time. The interior configuration helps separate the equipment and maintain its position inside the enclosure.
Case Features
- The case is designed for transporting two plasma displays.
- The enclosure is made of 6.5 mm laminated plywood.
- The case dimensions are 1230 × 800 × 300 mm.
- The hardware includes 4 surface-mounted latches.
- The case is equipped with 4 recessed carrying handles.
- The design includes 4 transport wheels with brakes, each 50 mm in diameter.
- The wheels are mounted on support slats to properly distribute the total weight across the bottom of the structure.
- The top lid features a 20 mm thick compression foam insert.
- The soft foam insert around the perimeter of the case is 40 mm thick.
- An internal divider covering the full screen area separates the two plasma displays.
Custom Design
BOXO designs transport cases for specific equipment and customer requirements. The enclosure dimensions and material, interior configuration, foam insert thickness, hardware, and wheel base are selected based on the dimensions and weight of the equipment.
If required, the structure can be adapted to the specific dimensions of the plasma displays, transportation format, and additional storage and transportation requirements.
Additional Information
The case can be made from materials with a thickness of 4, 6, 9, or 12 mm: laminated plywood, PVC-coated plywood, lightweight plastic, or composite aluminum, in any required color.
Optional equipment:
- transport wheels
- telescopic handle
- access openings
- additional hardware
-
Prototype Before Production. We first manufacture a single prototype for your review and approval. Once every detail is confirmed, we proceed with full production, ensuring every unit matches the approved sample exactly.
-
Rush Orders in as Little as 5 Days. Thanks to our efficient production process, we can fulfill urgent orders quickly without compromising quality
-
From 1 to 1,000+ Cases. Whether you need a single custom case or a large production run, we can handle orders of any size. We serve both businesses and individual customers, delivering high-quality solutions at scale.
