Case for YAMAHA M7CL-48 Mixing Console
The YAMAHA M7CL-48 digital mixing console case is made of 9.5 mm plywood and features a removable wheel base and a two-section toolbox for cable connections. A 20 mm thick soft foam insert securely holds the console without contacting the faders or hardware buttons, while the case design provides full access to the front of the equipment.
Product description
The YAMAHA M7CL-48 digital mixing console case is designed to accommodate, transport, and provide convenient access to the equipment during operation. The structure provides access to the front of the console, while the toolbox helps organize cable connections and store additional equipment.
Case Features
- The enclosure is made of 9.5 mm plywood.

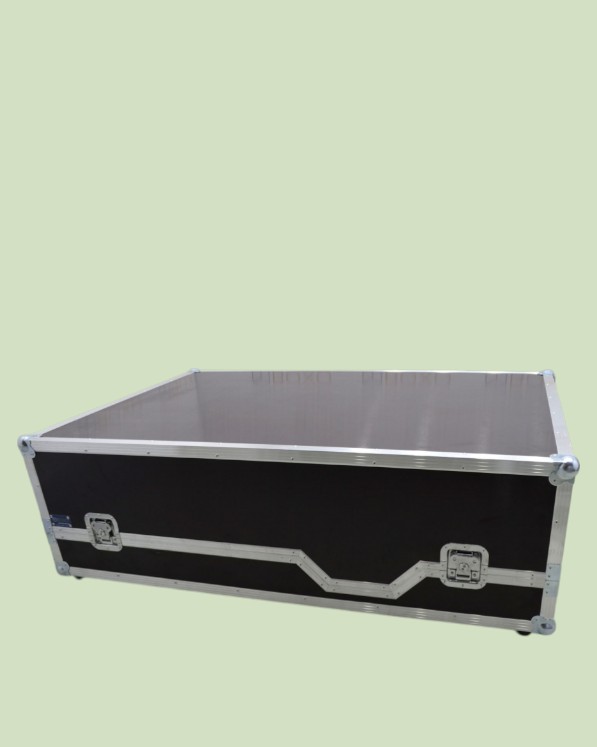

- The external case dimensions are 1300 × 900 × 300 mm.

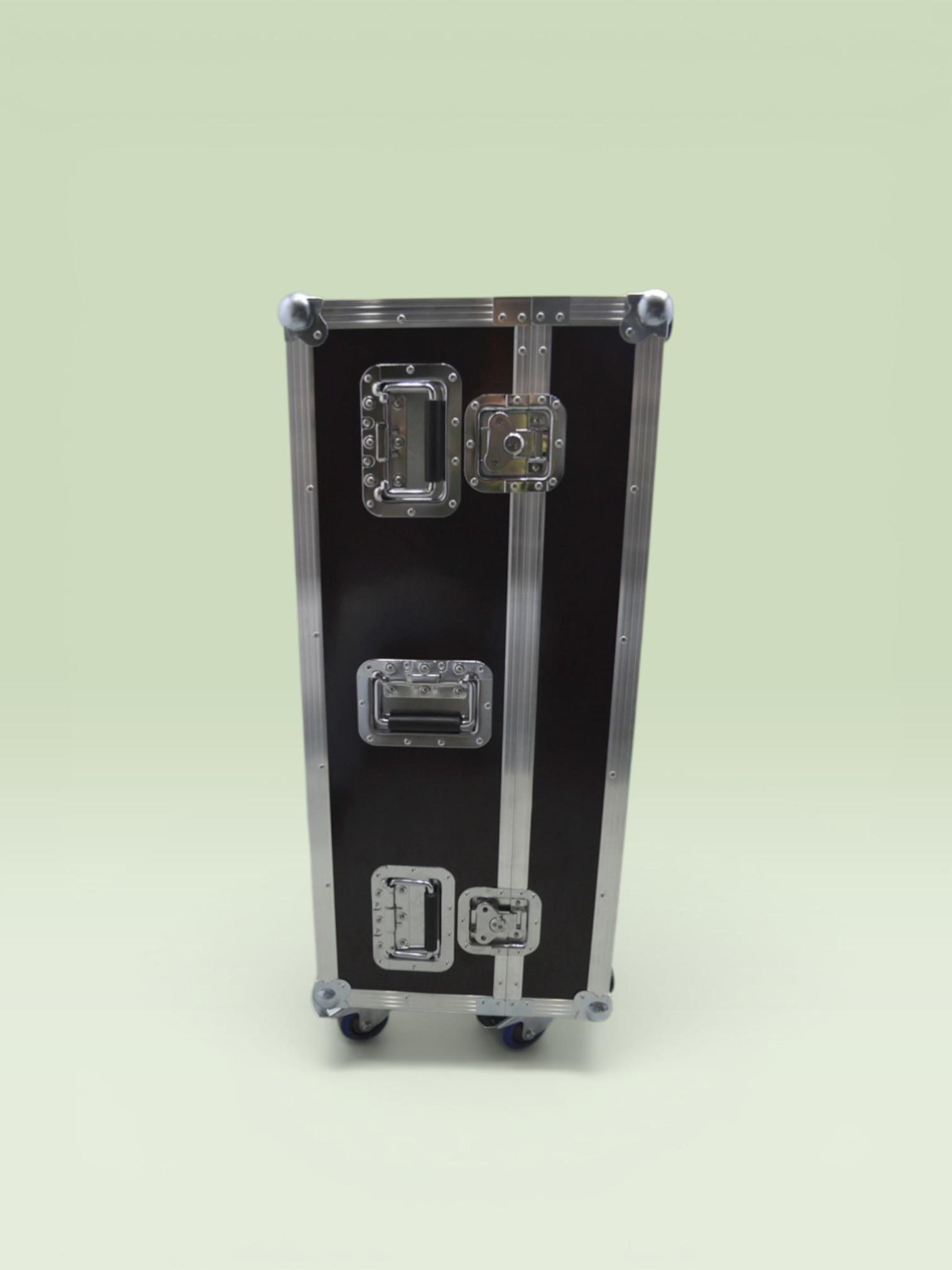

- The hardware includes 6 recessed latches.

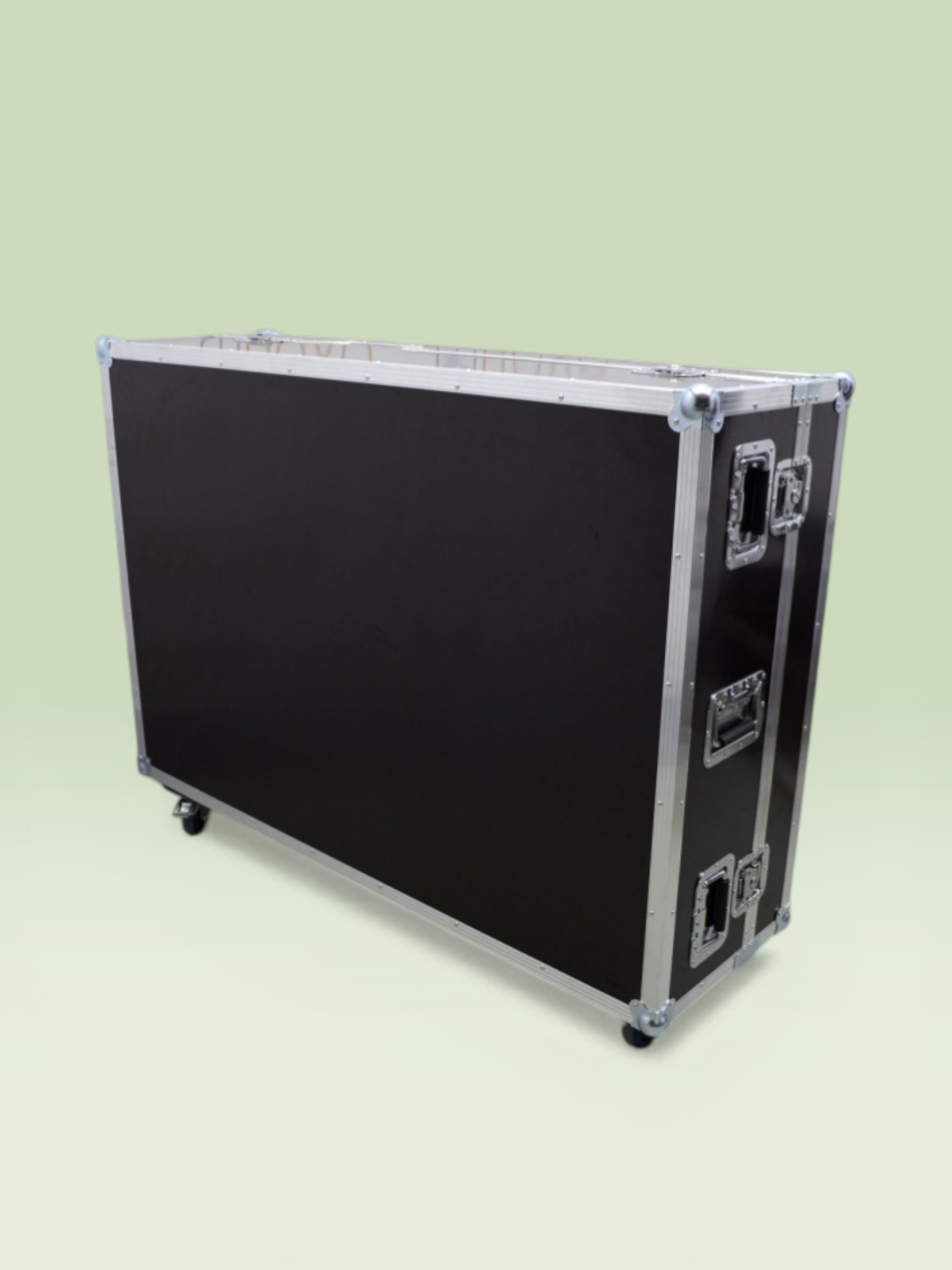

- The case is equipped with 6 recessed carrying handles.
- The enclosure has 4 feet.

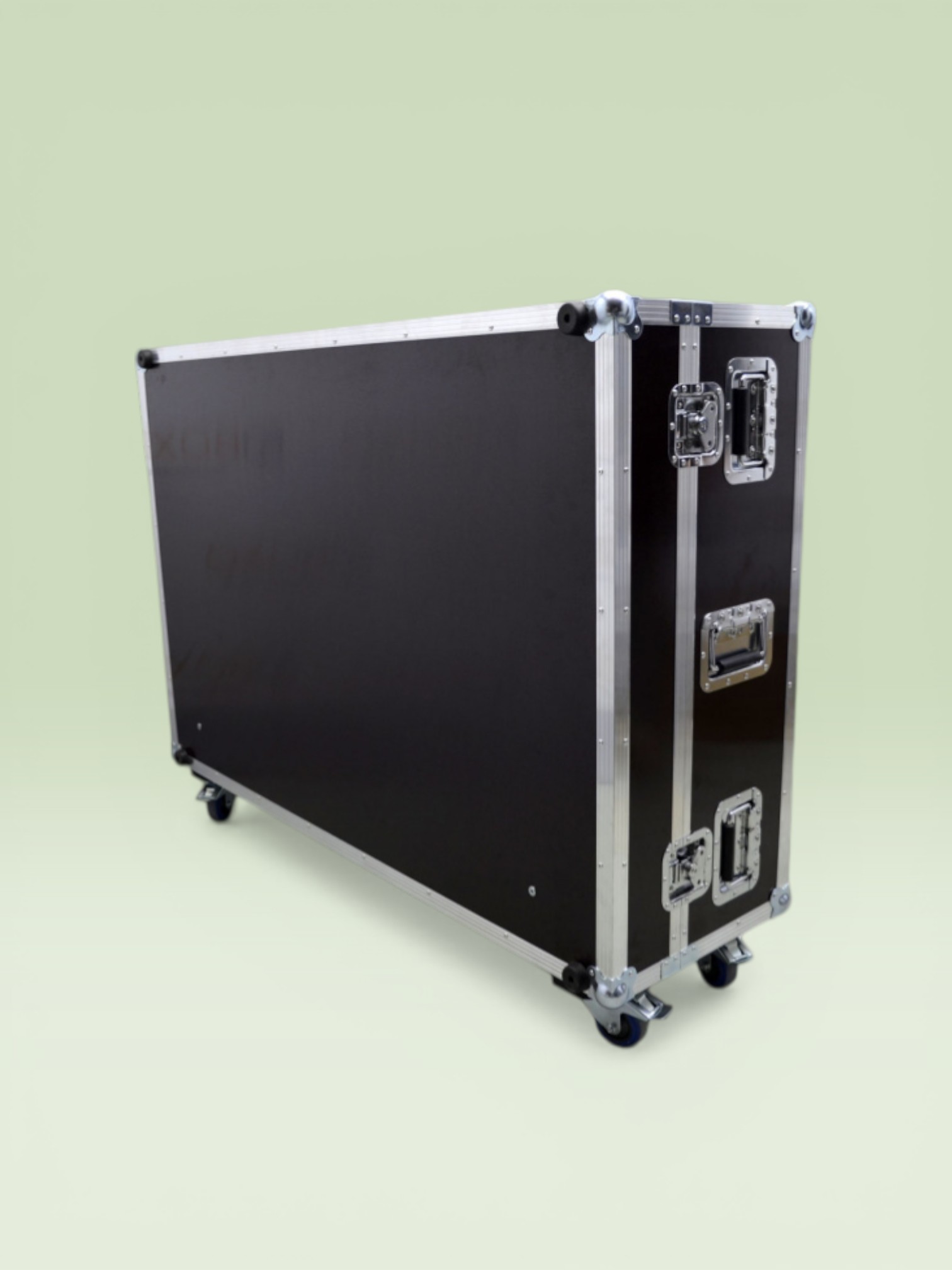

- The case features a removable wheel base.

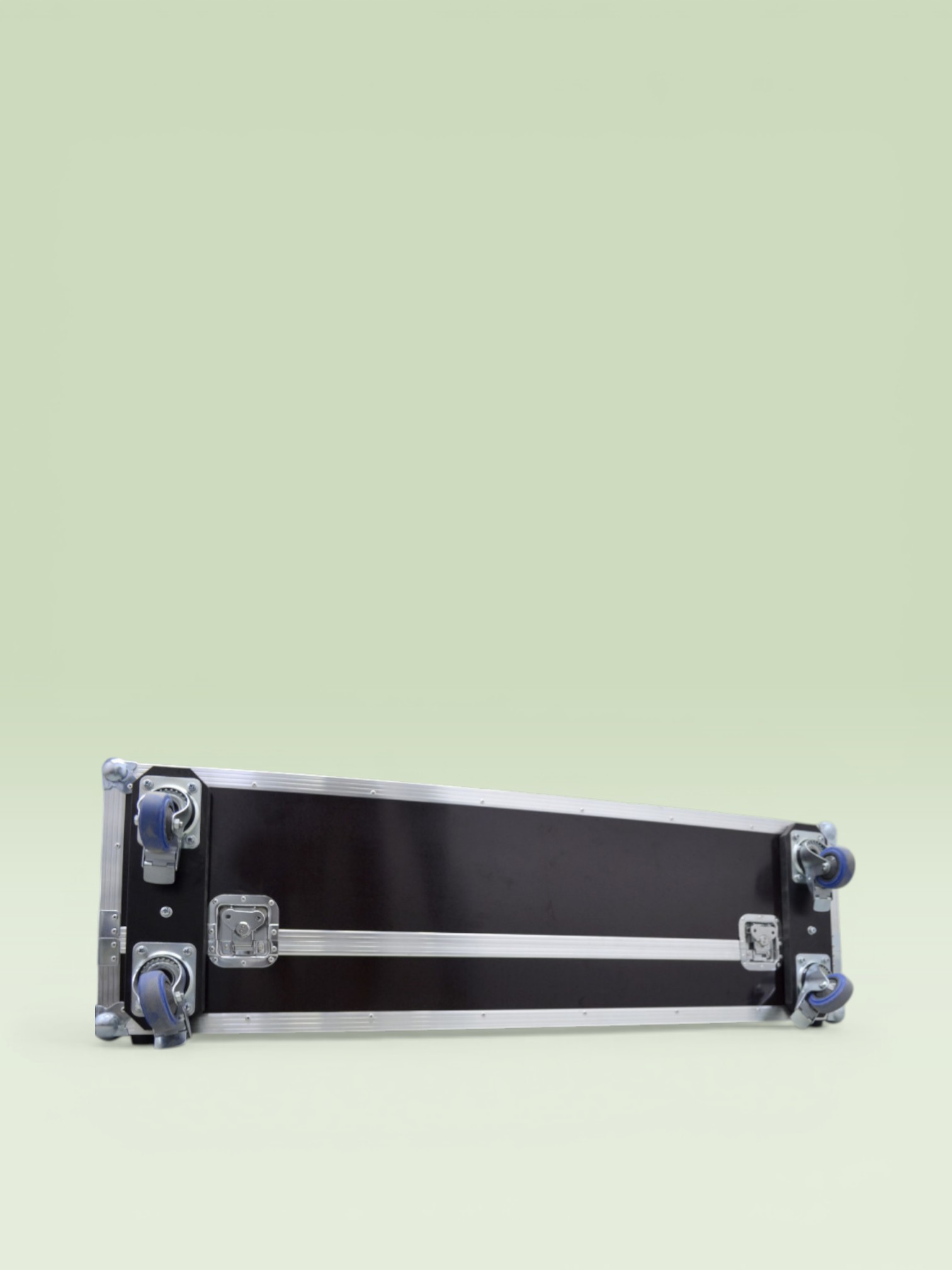

- The transport wheels are attached to the case lid and are removed together with it, so the wheels are not present during operation.

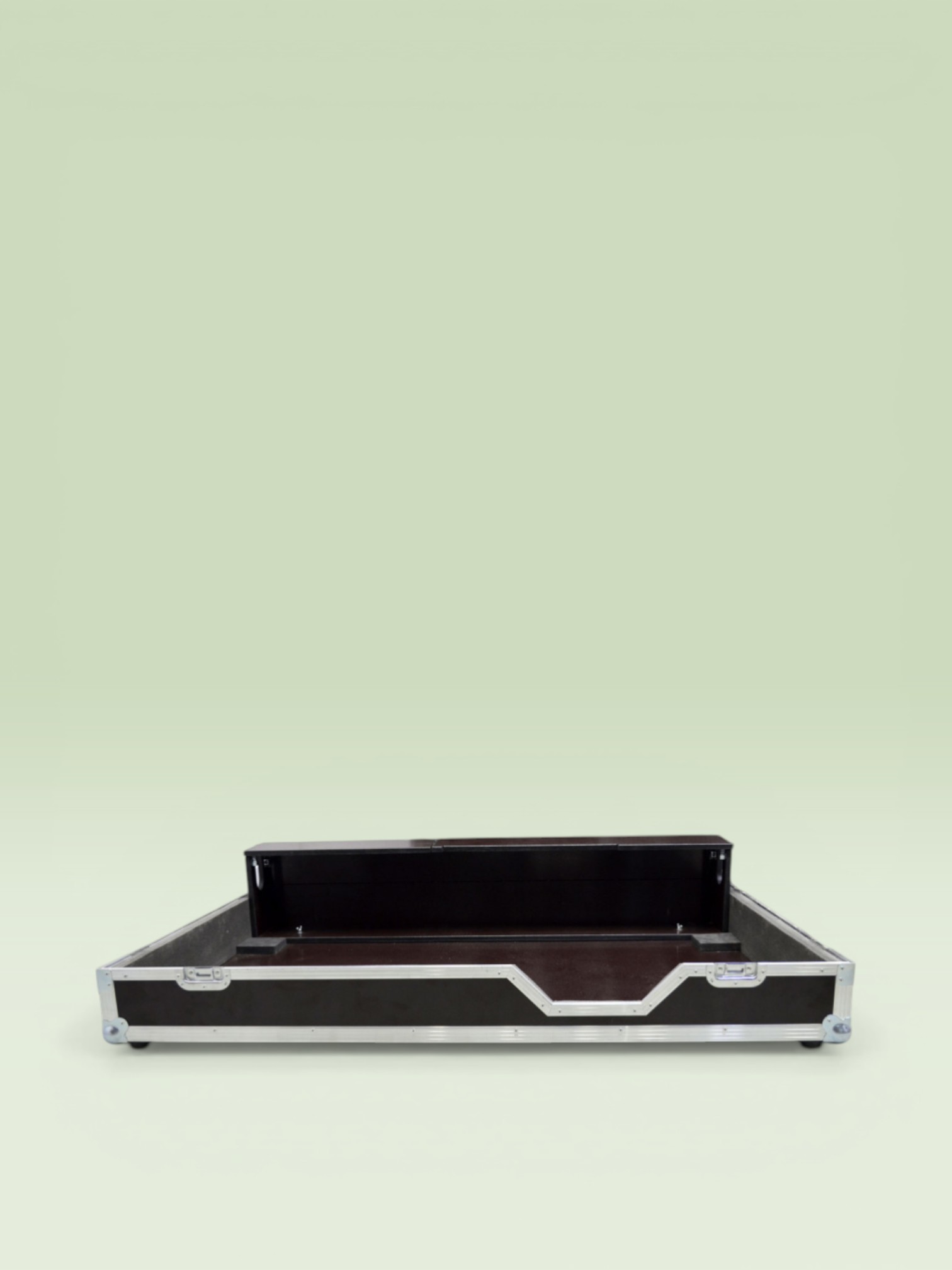

- The shape of the enclosure provides full access to the front of the YAMAHA M7CL-48 mixing console.

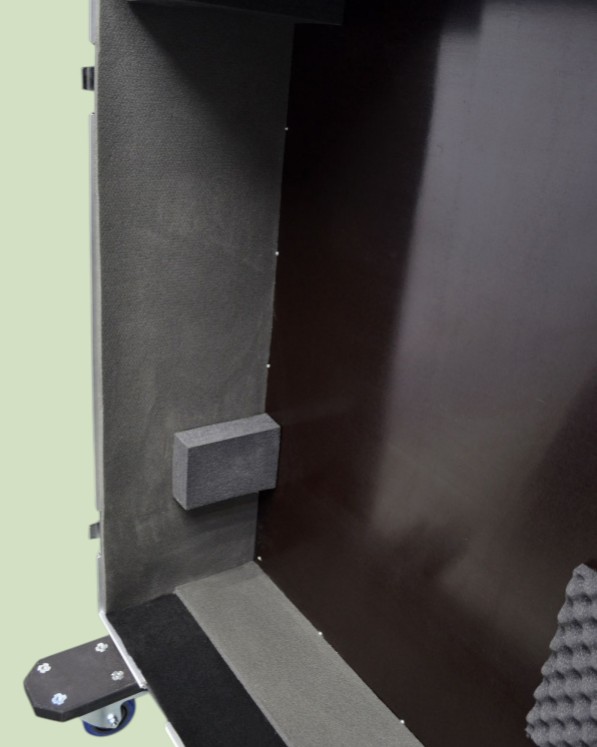

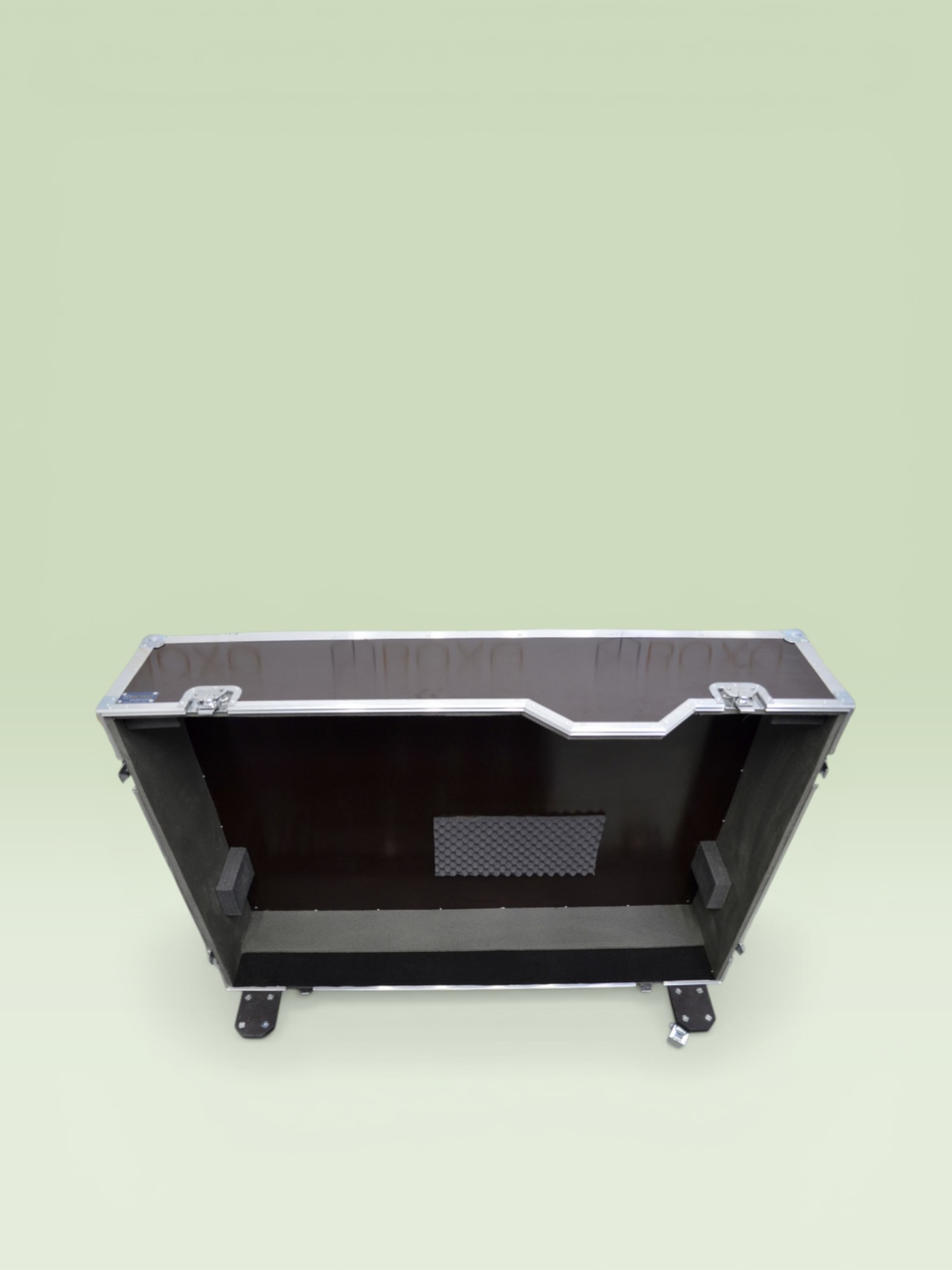

- The lid features a soft foam insert that secures the console when the case is closed.
- The side foam insert is made of 20 mm thick soft material.
- The foam insert is configured to hold the equipment securely without contacting the faders or hardware buttons.

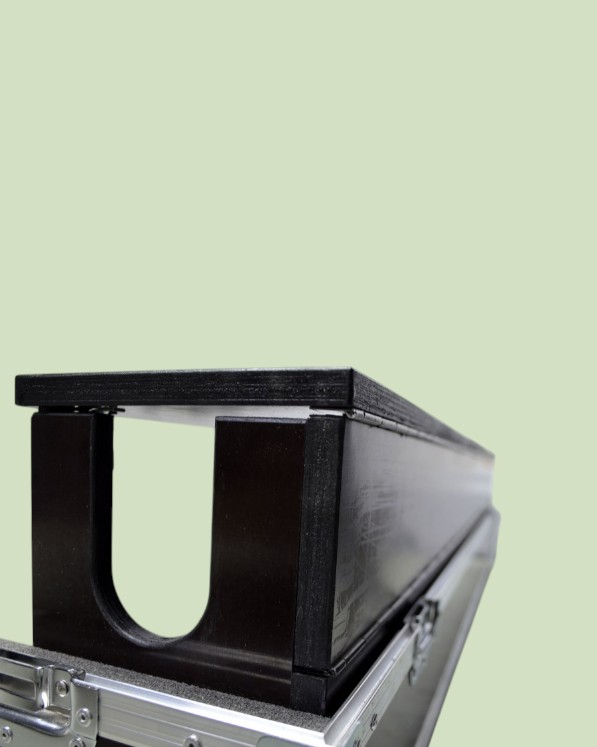

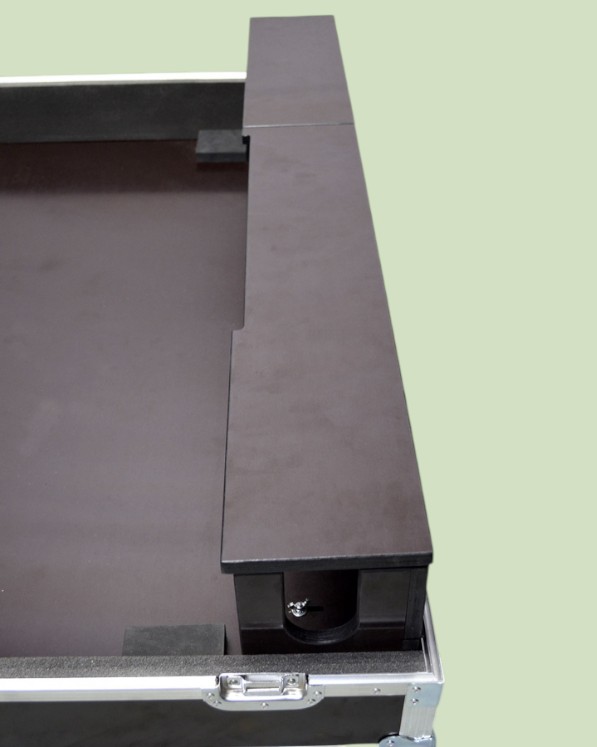

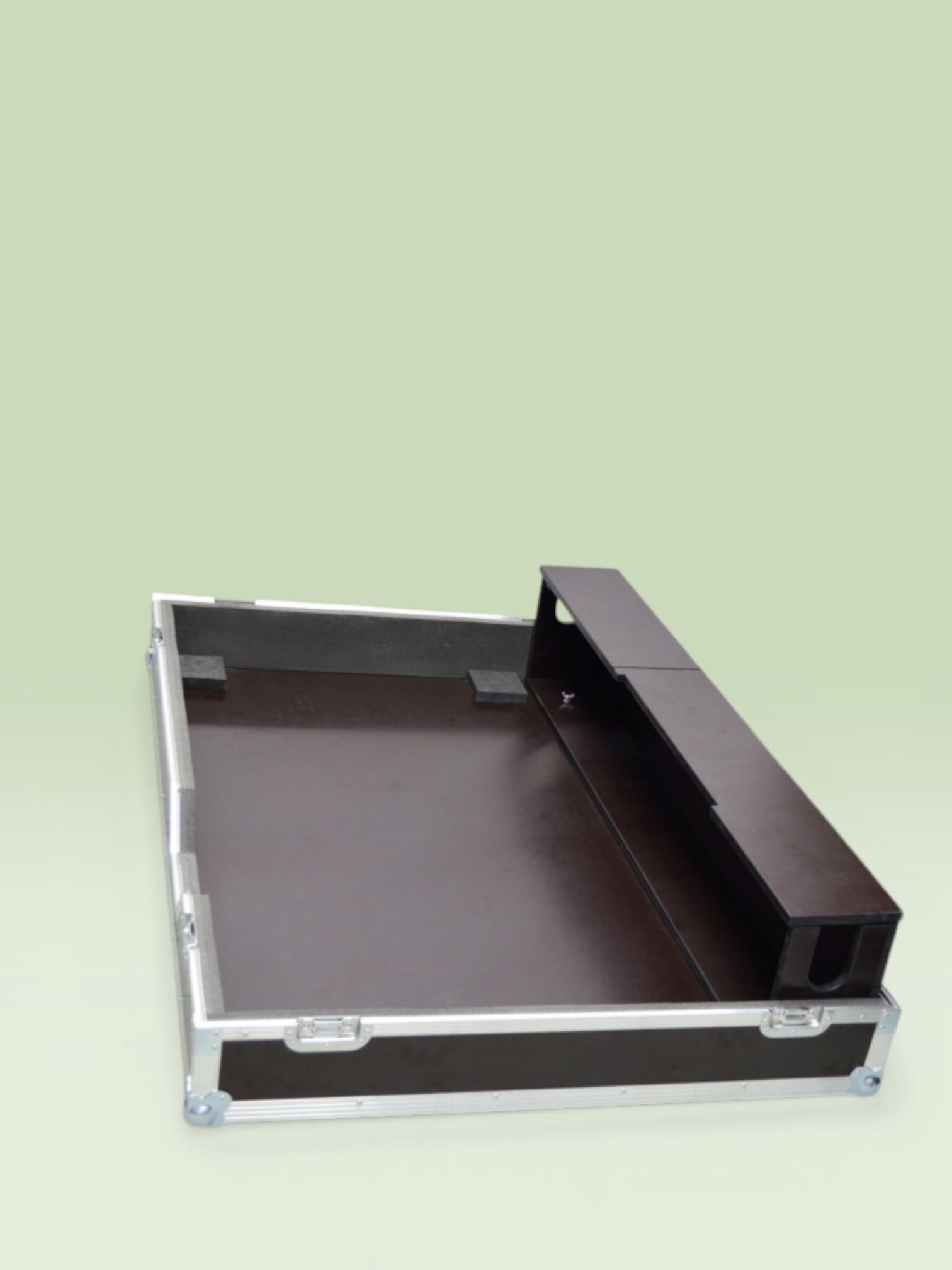

- The design includes a 150 mm wide toolbox for cable connections.

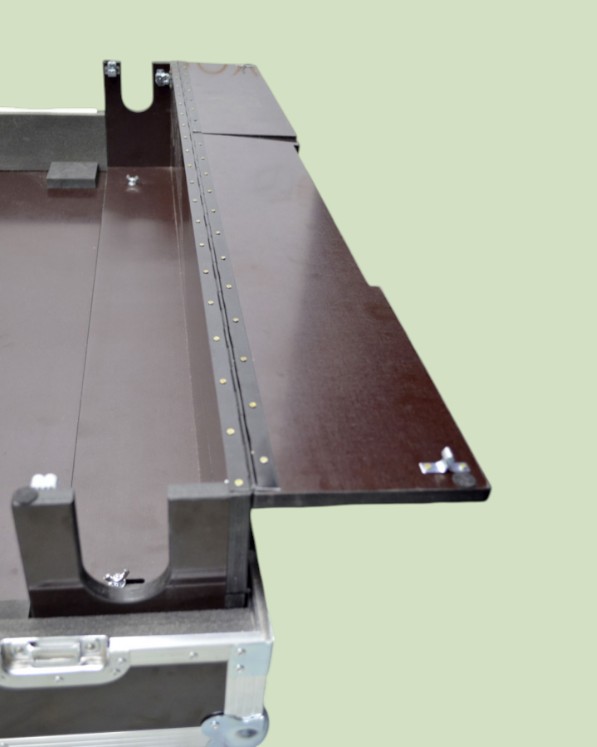

- The toolbox is divided into two independent sections that open separately.
- A laptop or other equipment can be placed on top of the toolbox without restricting access to the internal sections.

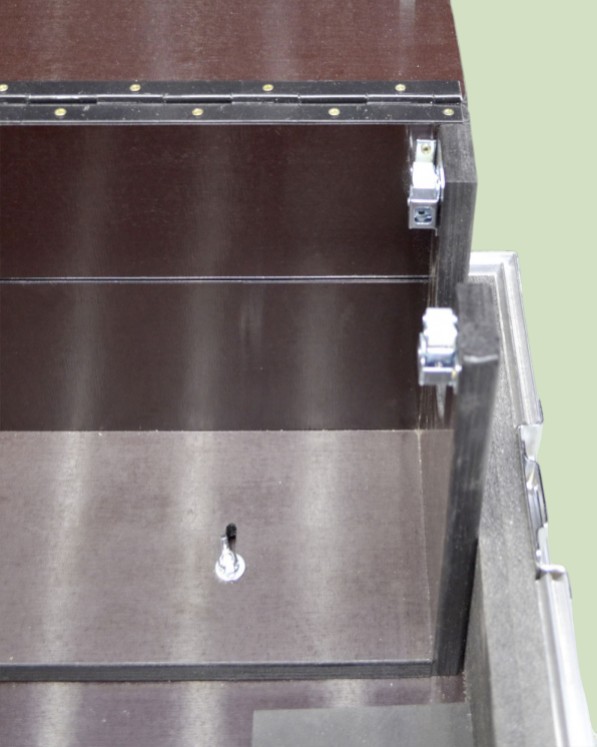

- The lids are equipped with spring retainers that help prevent unwanted opening during vertical transportation.
- The toolbox design simplifies cable management at the rear of the mixing console without restricting access to the required connectors.
- The approximate total case weight is 28 kg.
Custom Design
BOXO designs transport cases according to the customer’s equipment and requirements. The enclosure dimensions, foam insert configuration, toolbox design, and placement of the wheel base, handles, latches, and removable components are selected based on the dimensions of the mixing console and the transportation conditions.
For the YAMAHA M7CL-48, a custom case can be manufactured with a properly configured foam insert, a two-section toolbox for cable connections, a removable wheel base, and the required hardware.
Additional Information
The case can be made from materials with a thickness of 4, 6, 9, or 12 mm: laminated plywood, PVC-coated plywood, lightweight plastic, or composite aluminum, in any required color.
Optional equipment:
- transport wheels
- telescopic handle
- access openings
- additional hardware
-
Prototype Before Production. We first manufacture a single prototype for your review and approval. Once every detail is confirmed, we proceed with full production, ensuring every unit matches the approved sample exactly.
-
Rush Orders in as Little as 5 Days. Thanks to our efficient production process, we can fulfill urgent orders quickly without compromising quality
-
From 1 to 1,000+ Cases. Whether you need a single custom case or a large production run, we can handle orders of any size. We serve both businesses and individual customers, delivering high-quality solutions at scale.
