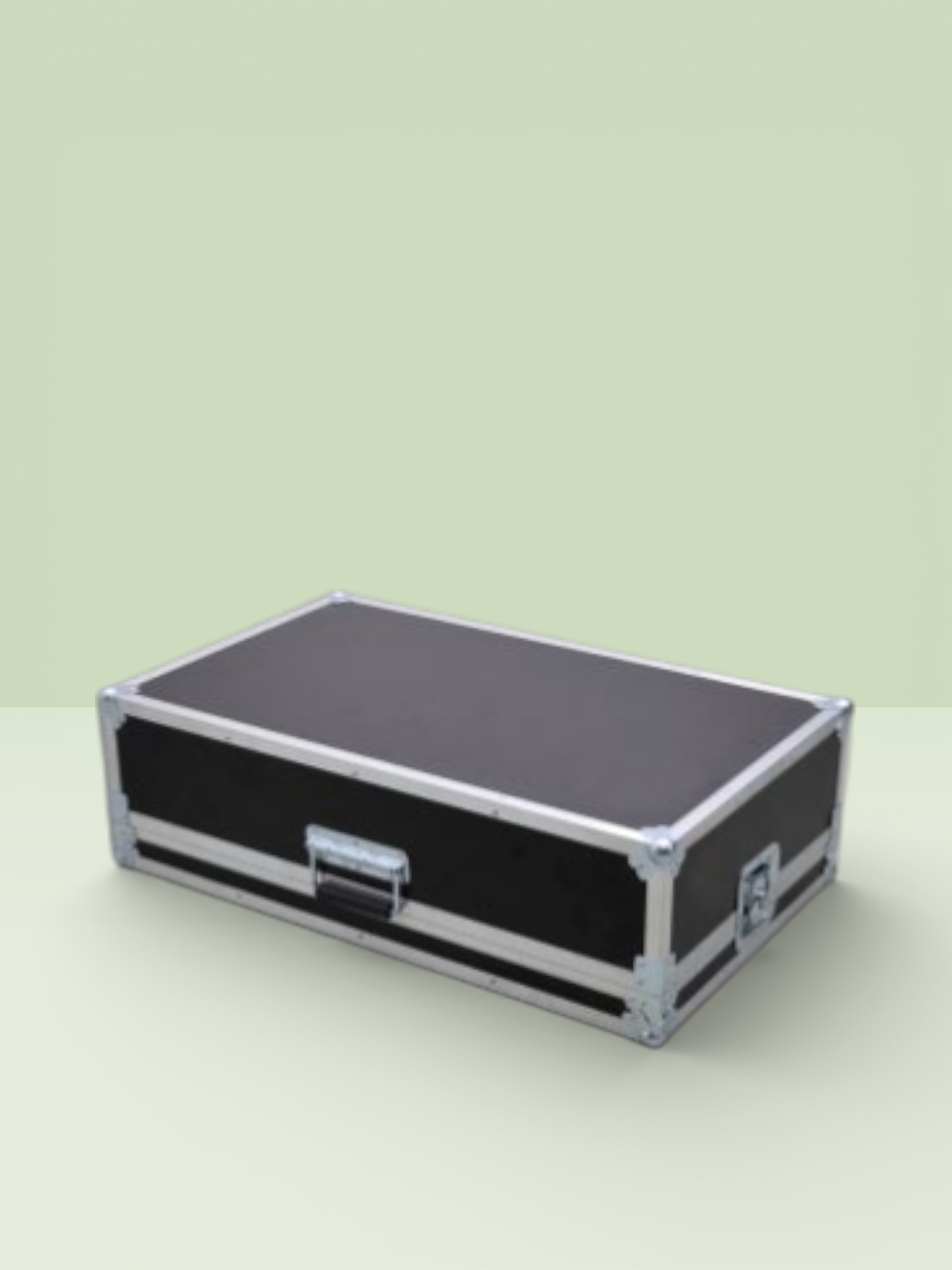

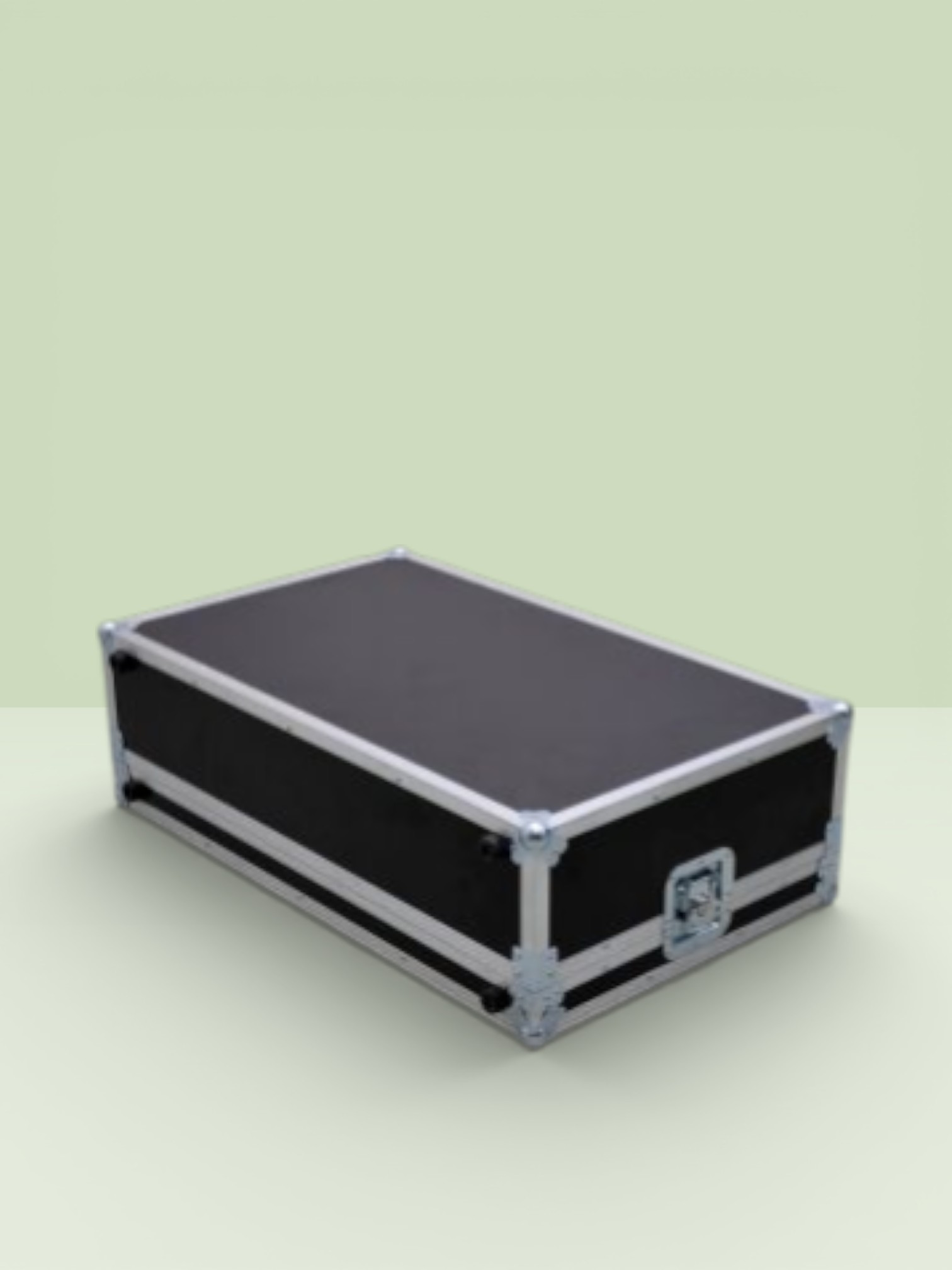

Pedalboard Case for 8–10 Guitar Effects Pedals
The pedalboard case for 8–10 guitar effects pedals is made of 6.5 mm laminated plywood and features a foam insert that securely holds the equipment in place. To begin operation, simply remove the top cover and use the lower section of the case as the working base.
Product description
The pedalboard case is designed to accommodate, transport, and operate guitar effects pedals. The design allows the equipment to be used without removing the pedalboard from the case.
To begin operation, simply remove the top cover. The pedalboard remains in the lower section of the case, which serves as the working base.
Case Features
- The enclosure is made of 6.5 mm laminated plywood.
- The case is designed to accommodate 8–10 guitar effects pedals.
- The pedal mounting area measures 700 × 400 mm.
- The external dimensions of the case are 756 × 456 mm.
- The enclosure height is 220 mm.
- The design consists of a lower working section and a removable top cover.
- The hardware includes 2 recessed latches and 1 surface-mounted handle.
- The lower section and side of the case are equipped with 8 feet.
- A foam insert for the pedalboard is provided inside.
- The top cover includes a foam insert that holds the pedalboard in place without touching the controls.

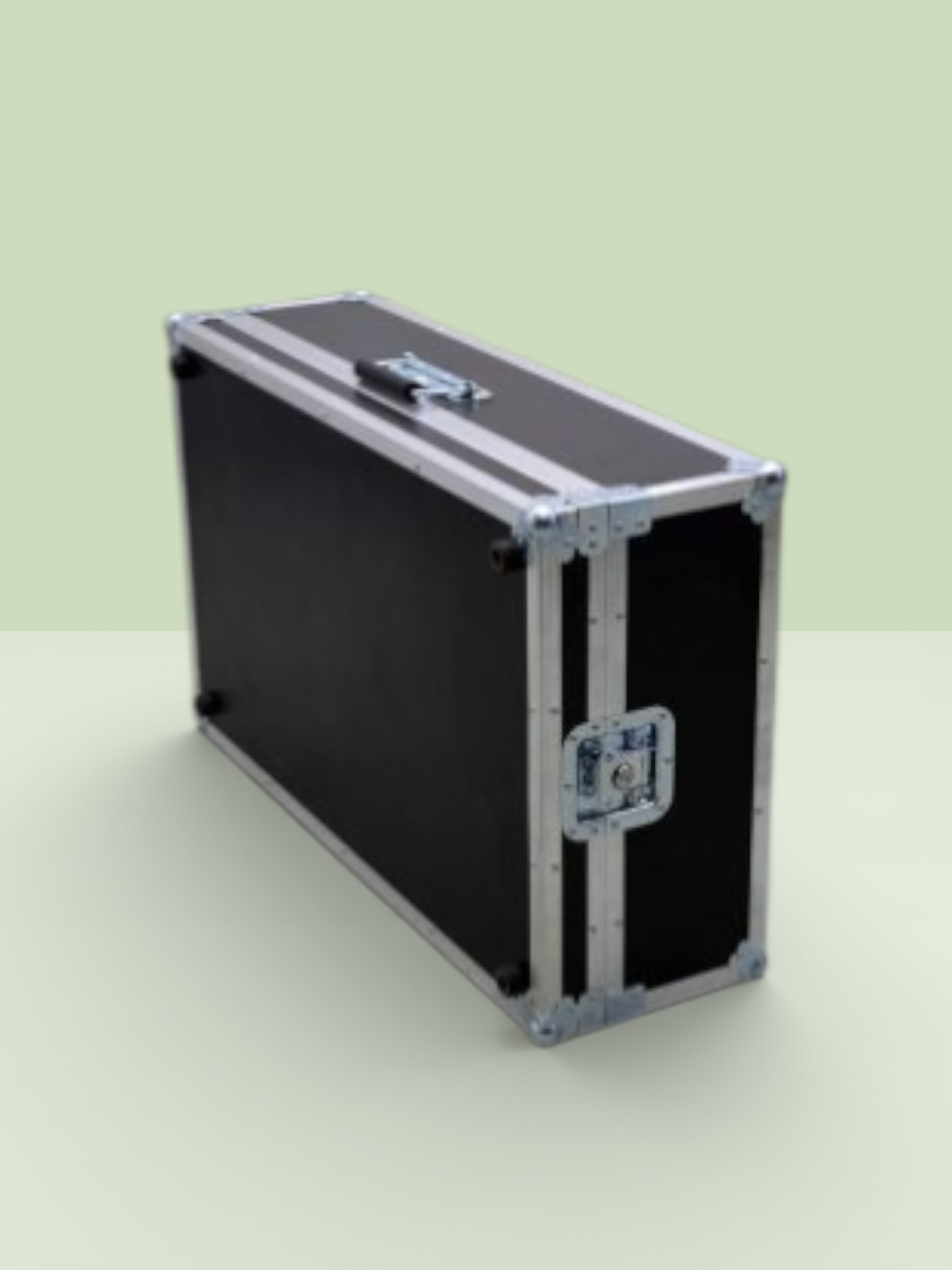

- During transportation, the case can be placed either on its bottom or on its side.
Custom Design
BOXO designs pedalboard cases based on the customer’s equipment and requirements. The enclosure dimensions, working area, interior configuration, material, and hardware are selected according to the number and arrangement of the guitar effects pedals.
For a set of 8–10 pedals, a custom case can be manufactured with a removable top cover, a lower working section, and a foam insert that secures the pedalboard.
Additional Information
The case can be made from materials with a thickness of 4, 6, 9, or 12 mm: laminated plywood, PVC-coated plywood, lightweight plastic, or composite aluminum, in any required color.
Optional equipment:
- transport wheels
- telescopic handle
- access openings
- additional hardware
-
Prototype Before Production. We first manufacture a single prototype for your review and approval. Once every detail is confirmed, we proceed with full production, ensuring every unit matches the approved sample exactly.
-
Rush Orders in as Little as 5 Days. Thanks to our efficient production process, we can fulfill urgent orders quickly without compromising quality
-
From 1 to 1,000+ Cases. Whether you need a single custom case or a large production run, we can handle orders of any size. We serve both businesses and individual customers, delivering high-quality solutions at scale.
